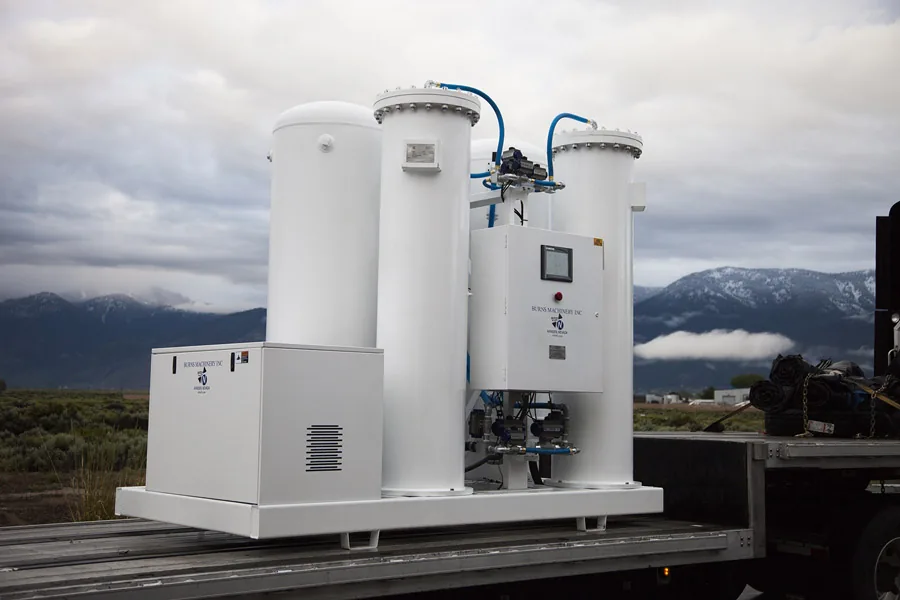

The most reliable Nitrogen Generators in North America

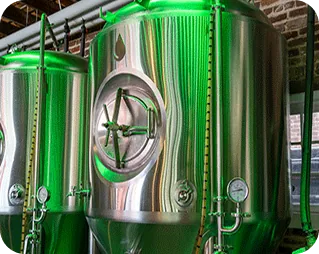

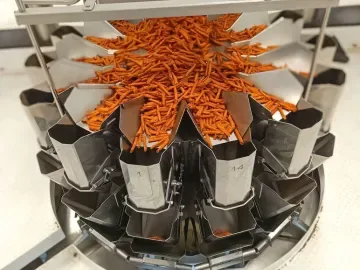

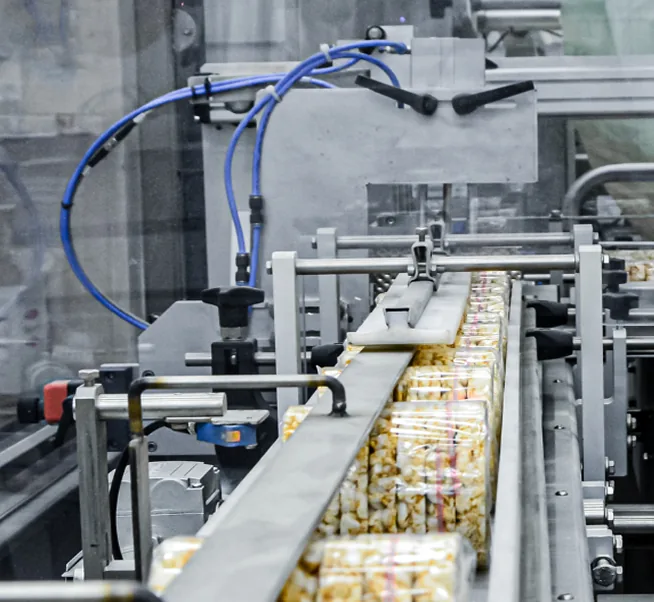

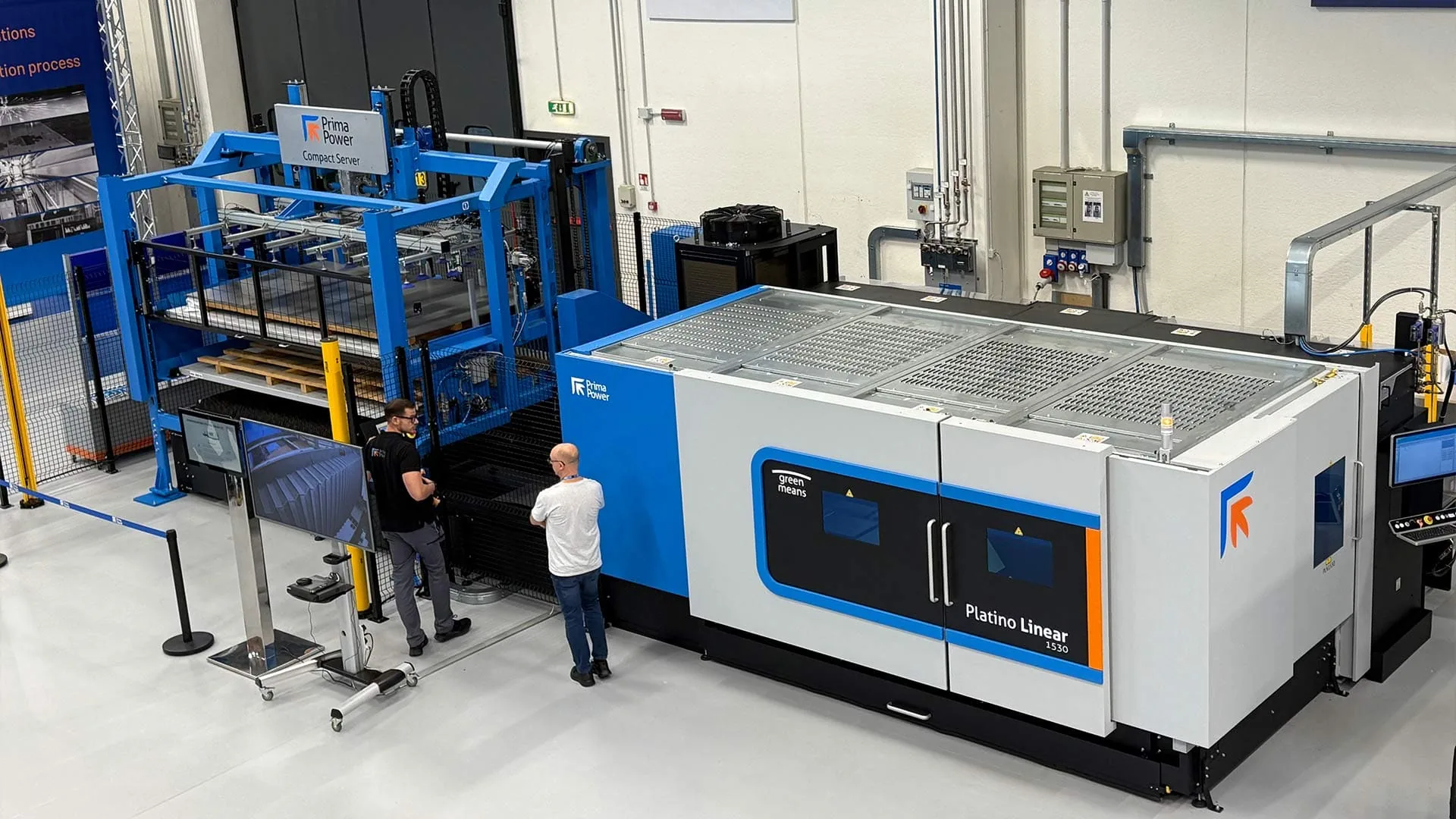

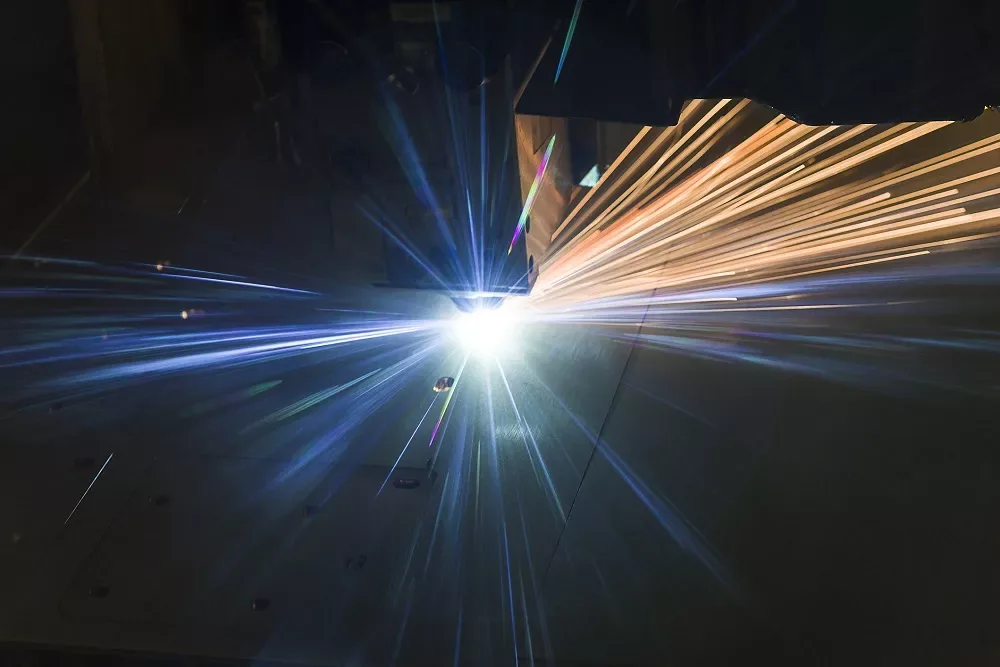

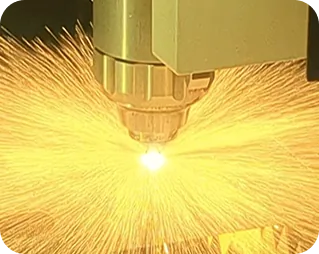

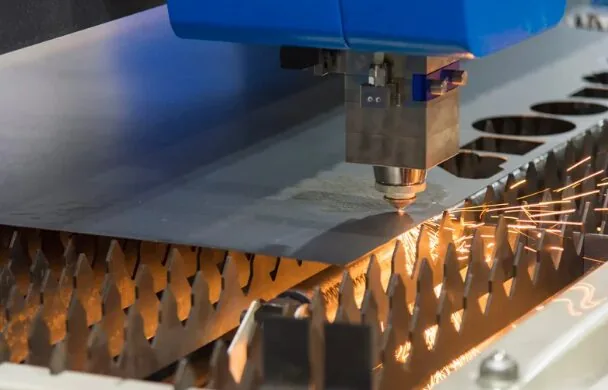

This amazing reliability is demonstrated by more than 1,000 installed nitrogen generators (and other machines) in diverse industries, including both routine and unique applications…from heavy industrial environments like metal fabrication, and oil & gas…to commercial processing environments like food packaging, breweries, and restaurants.

hero-b
AIRTEMP Mérida
about-b
LibertySystems_clock

0 million

hours of installed nitrogen generator usage
LibertySystems_trending-up

0%

uptime

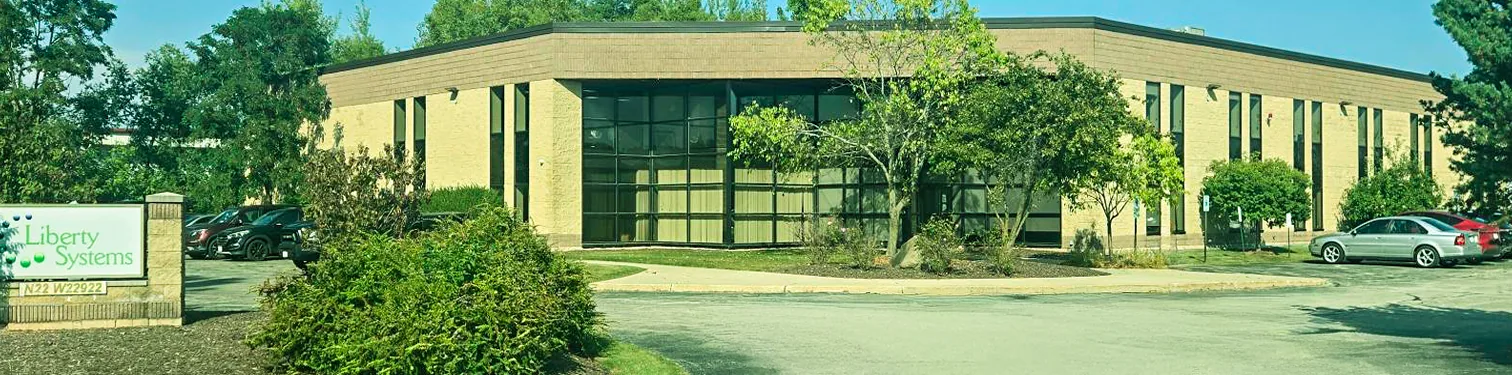

About Liberty Systems

It all began in 2004 when one of our customers asked us to inert electrical control cabinets with nitrogen. Working with our customer, we developed a system to keep a positive pressure of nitrogen inside the control cabinet while keeping the corrosive gasses out and away from the electrical components. The goal was to increase the current life of the electrical components inside the cabinets from the current 12-18 months to 36 months or more. Our design extended the life of the cabinets, some of which are still functioning today.

Our Products

We have filter maintenance kits and other products for all your nitrogen generator needs

Membrane vs. PSA Technology

The pressure swing adsorption (PSA) process has become a widely used unit operation for gas separation or purification. PSA is attractive, because it requires no separate desorption steps that need heat input, and because it runs continuously with automatic regeneration of the adsorbent. It is capable of producing a very pure product, up to 99.999%.

One of the uses for PSA process is nitrogen production from air. The process for nitrogen production uses carbon molecular sieve (CMS) as an adsorbent, which is kinetically selective for oxygen. In this material, oxygen is the faster diffusing species and is preferentially adsorbed, although at equilibrium, the affinities for oxygen and nitrogen are almost the same.

PSA systems generally have a higher price point, larger footprint and require more preventative maintenance.

Air separation membrane technology allows air to pass or permeate through the wall of hollow fibers into the shell of the hollow-fiber module, which is maintained at essentially atmospheric pressure. Oxygen, water, and carbon dioxide are more easily passed through the walls of the hollow fibers than nitrogen and argon, and they leave the module as permeate or the waste stream. The gas remaining in the fiber bore is enriched in nitrogen and argon as it moves through the fiber from the feed end to the product end of the module.

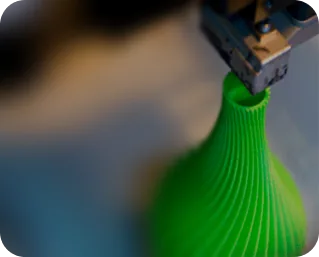

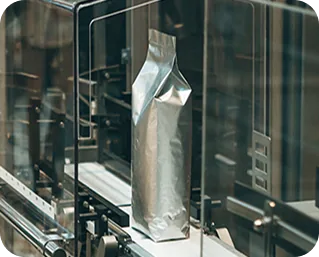

This process can produce up to 99.95+% N2 in the product stream. Such purified nitrogen is widely used for blanketing or inerting applications in, for example, fuel tank blanketing, food container/packaging blanketing, modified atmosphere packaging, chemical industries, storage tank blanketing or purging and 3D printing

Membrane systems generally have a lower price point, smaller footprint and require less preventative maintenance.

membrane-psa-a
membrane-psa-b
